12V 50ah 100ah 150ah 200ah250ah Gel Storage Lithium Ion LiFePO4 Starter Home Portable Battery for Solar System Street Lights Power Storage

1 / 5

12V 50ah 100ah 150ah 200ah250ah Gel Storage Lithium Ion LiFePO4 Starter Home Portable Battery for Solar System Street Lights Power Storage

Send Inquiry

Product Description

⚡

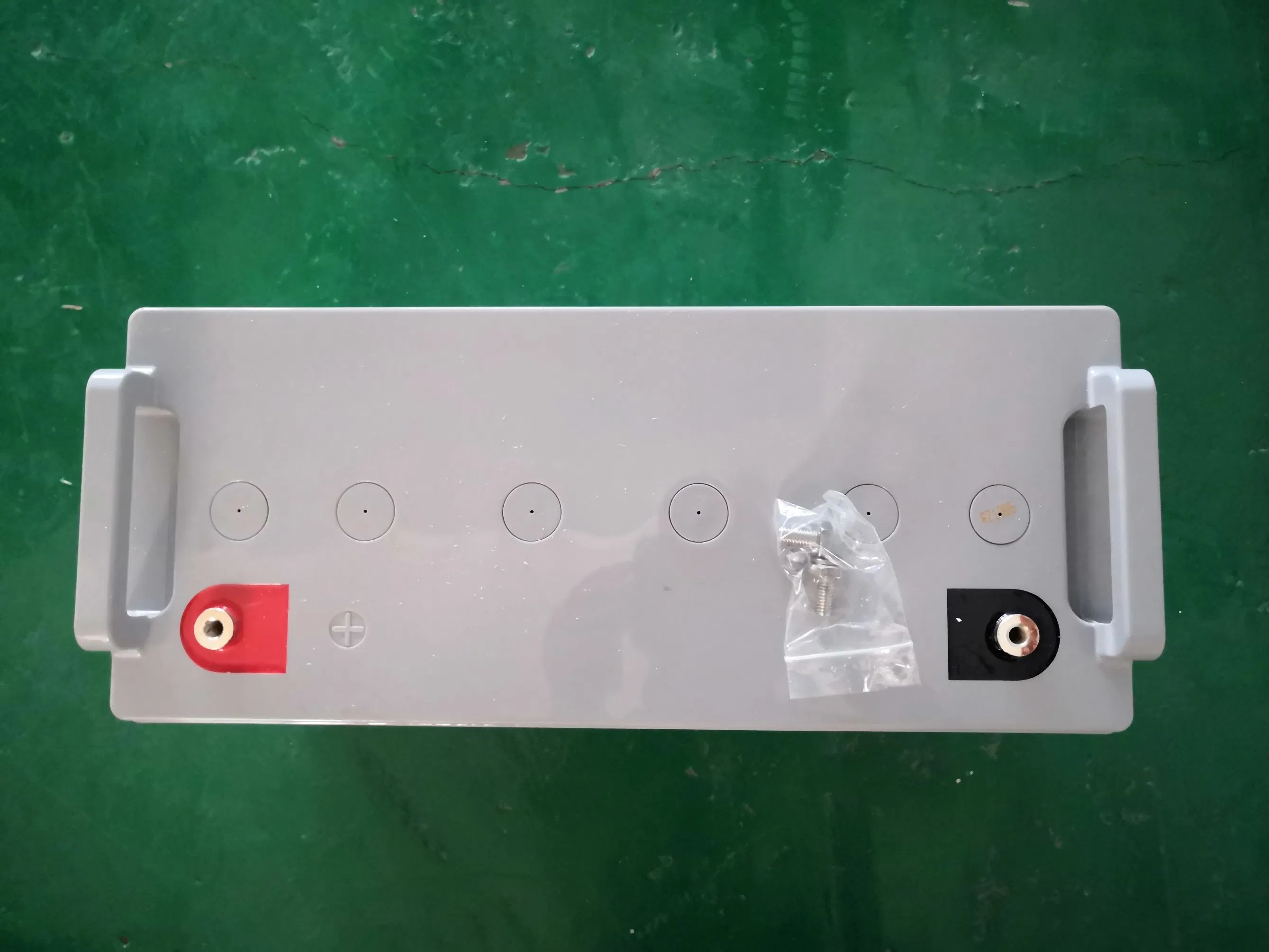

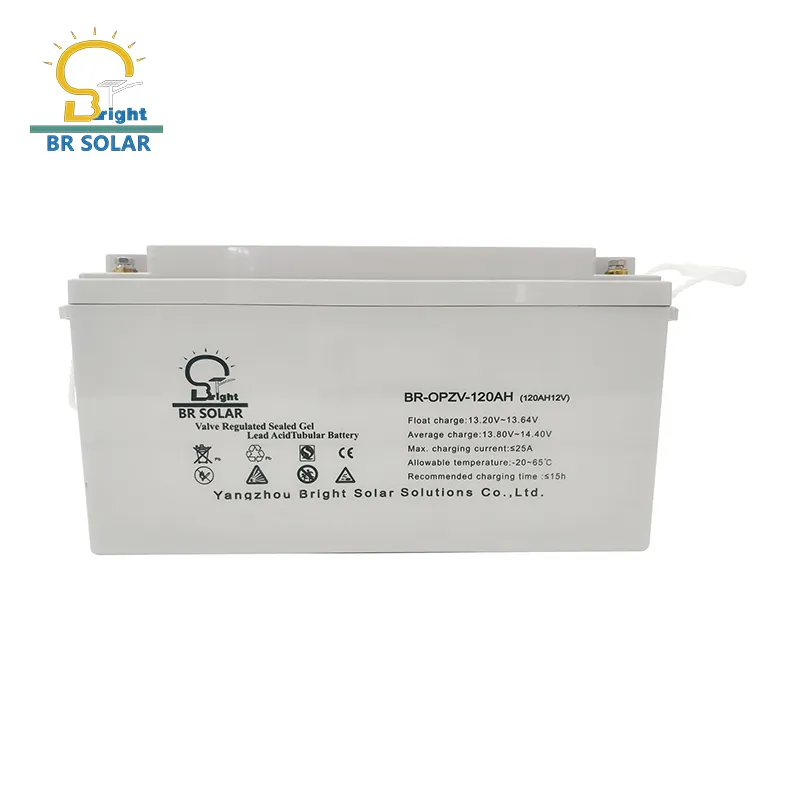

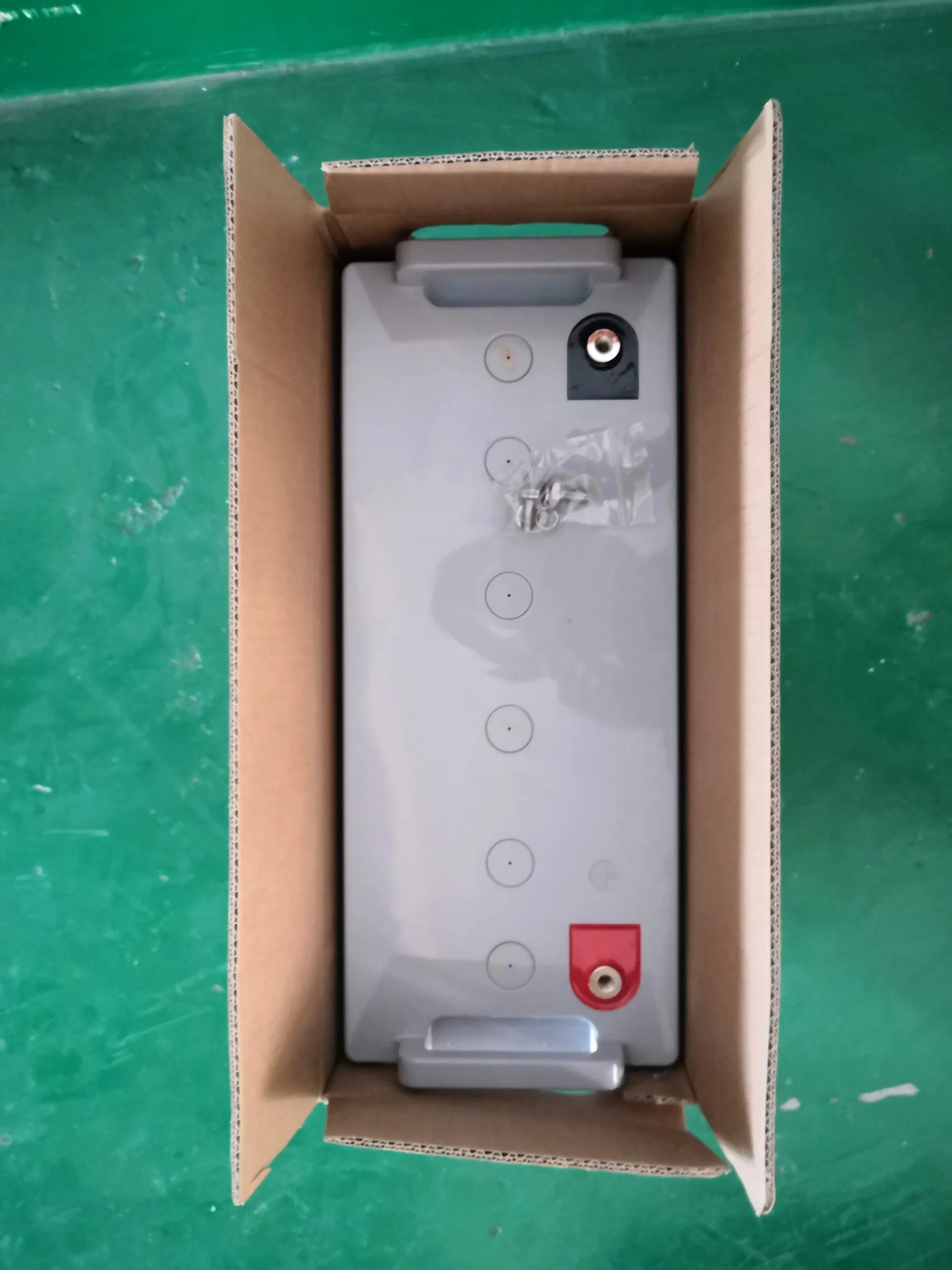

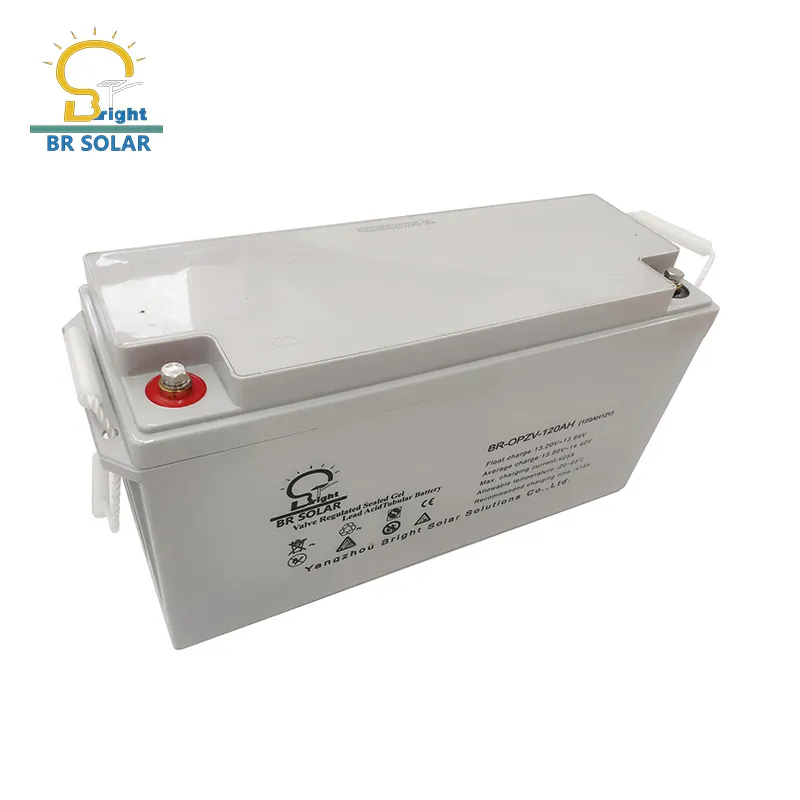

Maintenance Free Gel Battery 12V 120Ah

🔋

High Capacity

120Ah @ 10hr rate

🌡️

Wide Temp Range

Works from -45ºC to 50ºC

♻️

Long Cycle Life

Up to 3287 cycles @ 30% DOD

Rated Voltage	Capacity (10hr)	Weight	Max Discharge	Max Charge	Self-Discharge	Material
12V	120Ah	44.8Kg	30I 10A (3min)	≤0.25C10	<2%/month	ABS

Using Temperature	Charge Voltage (25ºC)	Cycle Life Performance	Capacity vs Temp
Discharge: -45ºC~50ºC Charge: -20ºC~45ºC Storage: -30ºC~40ºC	Float: 13.2V-13.6V Average: 13.8V-14.4V	100% DOD: 900 times 50% DOD: 2130 times 30% DOD: 3287 times	105% @ 40ºC 90% @ 0ºC 70% @ -20ºC

📊

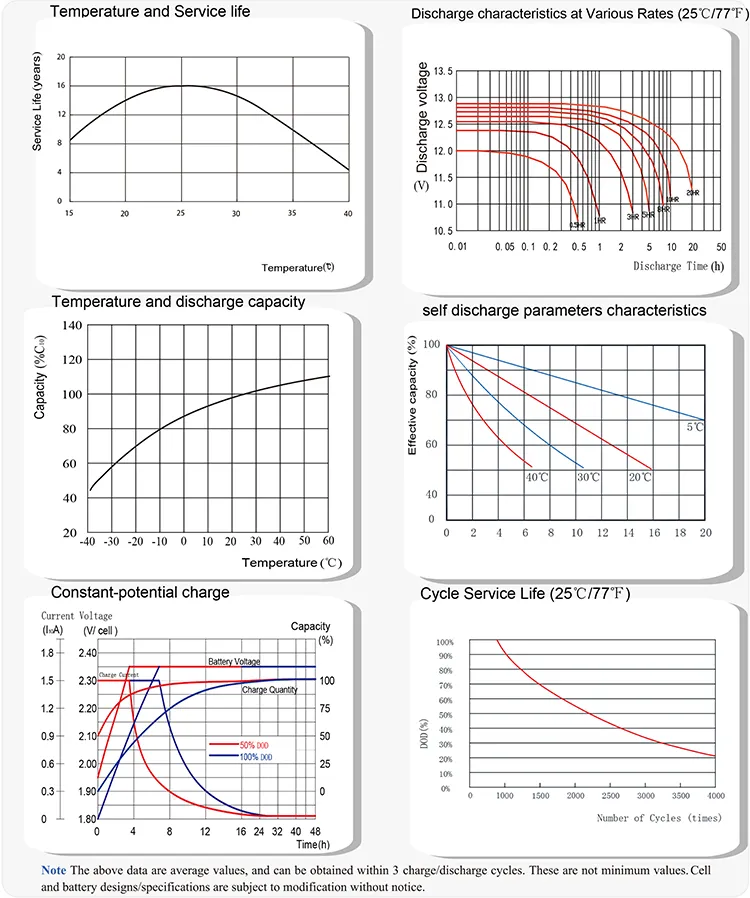

Discharge Characteristics (25ºC, A)

Terminal Voltage	1H	3H	5H	10H	20H	50H	100H	120H
1.7V	55.22	25.11	16.78	12.72	5.59	2.35	1.28	1.13
1.75V	54.12	24.85	16.48	12.57	5.46	2.26	1.19	1.05
1.8V	53.04	24.61	16.22	12.00	5.33	2.18	1.14	0.98
1.85V	50.92	24.47	15.91	11.97	5.07	2.09	1.07	0.92

❓

Frequently Asked Questions

What is the advantage of a Maintenance Free Gel Battery?

Gel batteries use a silica-based gel to hold the electrolyte, making them spill-proof and vibration resistant. Being maintenance-free means you don't need to add water or check electrolyte levels during its service life.

How many cycles can I expect from the 12V 120Ah battery?

The cycle life depends on the Depth of Discharge (DOD). It can achieve approximately 900 cycles at 100% DOD, 2130 cycles at 50% DOD, and up to 3287 cycles at 30% DOD.

What is the recommended charging voltage?

For float charging at 25ºC, the recommended voltage is 13.2V to 13.6V. For average/cycle charging, it should be between 13.8V and 14.4V.

Can this battery work in extreme cold or hot weather?

Yes, this battery is designed for a wide temperature range. It can discharge effectively between -45ºC and 50ºC, making it suitable for various outdoor solar and power storage applications.

What is the self-discharge rate of this battery?

The battery features a very low self-discharge rate of less than 2% per month at 25ºC, allowing for longer storage periods without losing significant power.

Is the ABS cover material durable?

Yes, the battery uses high-quality ABS material for the cover, which provides excellent impact resistance and protects the internal components in demanding environments.
